A2UI Component Reference

A2UI (Agent-to-UI) is Flow-Like’s protocol for agent-driven interfaces. It enables AI agents to generate rich, interactive UIs that render natively across platforms.

Overview

A2UI components are organized into categories:

Layout - Structure and arrangement of content
Display - Visual content presentation
Interactive - User input and actions
Container - Grouping and organization
Game/Visual - Advanced graphics and game elements

Layout Components

Row

Arranges children horizontally in a flex row.

{
  "type": "Row",
  "props": {
    "gap": "4",
    "justify": "between",
    "align": "center",
    "wrap": true
  },
  "children": [...]
}

Property	Type	Default	Description
`gap`	string	`"0"`	Space between children (Tailwind spacing)
`justify`	string	`"start"`	Justify content: `start`, `end`, `center`, `between`, `around`, `evenly`
`align`	string	`"stretch"`	Align items: `start`, `end`, `center`, `stretch`, `baseline`
`wrap`	boolean	`false`	Whether children should wrap to next line

Column

Arranges children vertically in a flex column.

{
  "type": "Column",
  "props": {
    "gap": "4",
    "align": "center"
  },
  "children": [...]
}

Property	Type	Default	Description
`gap`	string	`"0"`	Space between children
`justify`	string	`"start"`	Justify content
`align`	string	`"stretch"`	Align items

Grid

CSS Grid layout with configurable columns.

{
  "type": "Grid",
  "props": {
    "cols": 3,
    "gap": "4",
    "responsive": {
      "sm": { "cols": 1 },
      "md": { "cols": 2 },
      "lg": { "cols": 3 }
    }
  },
  "children": [...]
}

Property	Type	Default	Description
`cols`	number	`1`	Number of columns
`rows`	number	-	Number of rows (auto if not set)
`gap`	string	`"0"`	Gap between grid items
`responsive`	object	-	Breakpoint-specific overrides

Stack

Overlays children on top of each other (z-axis stacking).

{
  "type": "Stack",
  "props": {
    "align": "center"
  },
  "children": [...]
}

List

Renders a dynamic list from a data template.

{
  "type": "List",
  "props": {
    "data": { "path": "/items" },
    "keyField": "id",
    "direction": "vertical"
  },
  "template": {
    "type": "Card",
    "props": {
      "title": { "path": "/items/$index/name" }
    }
  }
}

Property	Type	Description
`data`	BoundValue	Path to array data
`keyField`	string	Unique key field for each item
`template`	Component	Template to render for each item
`direction`	string	`vertical` or `horizontal`

Display Components

Text

Displays text content with typography options.

{
  "type": "Text",
  "props": {
    "content": "Hello, World!",
    "variant": "h1",
    "color": "primary"
  }
}

Property	Type	Default	Description
`content`	BoundValue	-	Text content (required)
`variant`	string	`"body"`	Typography variant: `h1`-`h6`, `body`, `caption`, `label`
`color`	string	-	Text color
`align`	string	`"left"`	Text alignment
`truncate`	boolean	`false`	Truncate with ellipsis
`maxLines`	number	-	Maximum lines before truncation


Displays an image with optional loading states.

{
  "type": "Image",
  "props": {
    "src": { "path": "/user/avatar" },
    "alt": "User avatar",
    "fit": "cover",
    "aspectRatio": "1/1"
  }
}

Property	Type	Description
`src`	BoundValue	Image URL
`alt`	string	Alt text for accessibility
`fit`	string	Object fit: `cover`, `contain`, `fill`, `none`
`aspectRatio`	string	Aspect ratio (e.g., `"16/9"`, `"1/1"`)
`fallback`	string	Fallback image URL

Icon

Displays an icon from the icon library.

{
  "type": "Icon",
  "props": {
    "name": "check",
    "size": "24",
    "color": "green"
  }
}

Property	Type	Default	Description
`name`	string	-	Icon name (required)
`size`	string	`"16"`	Icon size in pixels
`color`	string	-	Icon color

Markdown

Renders Markdown content.

{
  "type": "Markdown",
  "props": {
    "content": "# Hello\n\nThis is **bold** text."
  }
}

Divider

A visual separator line.

{
  "type": "Divider",
  "props": {
    "orientation": "horizontal",
    "variant": "solid"
  }
}

Interactive Components

Button

Clickable button with various styles.

{
  "type": "Button",
  "props": {
    "label": "Click me",
    "variant": "primary",
    "size": "md",
    "disabled": false
  },
  "actions": {
    "onClick": {
      "type": "submit",
      "payload": { "action": "save" }
    }
  }
}

Property	Type	Default	Description
`label`	BoundValue	-	Button text
`variant`	string	`"default"`	Style variant: `default`, `primary`, `secondary`, `outline`, `ghost`, `destructive`
`size`	string	`"md"`	Size: `sm`, `md`, `lg`
`disabled`	BoundValue	`false`	Disabled state
`loading`	BoundValue	`false`	Loading state
`icon`	string	-	Icon name
`iconPosition`	string	`"left"`	Icon position: `left`, `right`

TextField

Text input field with validation.

{
  "type": "TextField",
  "props": {
    "value": { "path": "/form/email" },
    "placeholder": "Enter email",
    "type": "email",
    "required": true
  },
  "actions": {
    "onChange": {
      "type": "updateData",
      "path": "/form/email"
    }
  }
}

Property	Type	Description
`value`	BoundValue	Current value
`placeholder`	string	Placeholder text
`type`	string	Input type: `text`, `email`, `password`, `number`, `tel`, `url`
`required`	boolean	Required validation
`minLength`	number	Minimum character length
`maxLength`	number	Maximum character length
`pattern`	string	Regex pattern for validation
`disabled`	BoundValue	Disabled state

Checkbox

Checkbox input with label.

{
  "type": "Checkbox",
  "props": {
    "checked": { "path": "/form/agree" },
    "label": "I agree to the terms"
  }
}

Switch

Toggle switch control.

{
  "type": "Switch",
  "props": {
    "checked": { "path": "/settings/notifications" },
    "label": "Enable notifications"
  }
}

Slider

Range slider input.

{
  "type": "Slider",
  "props": {
    "value": { "path": "/settings/volume" },
    "min": 0,
    "max": 100,
    "step": 1
  }
}

Select

Dropdown selection.

{
  "type": "Select",
  "props": {
    "value": { "path": "/form/country" },
    "options": [
      { "value": "us", "label": "United States" },
      { "value": "uk", "label": "United Kingdom" }
    ],
    "placeholder": "Select a country"
  }
}

RadioGroup

Radio button group.

{
  "type": "RadioGroup",
  "props": {
    "value": { "path": "/form/plan" },
    "options": [
      { "value": "free", "label": "Free", "description": "Basic features" },
      { "value": "pro", "label": "Pro", "description": "All features" }
    ]
  }
}

DateTimeInput

Date and time picker.

{
  "type": "DateTimeInput",
  "props": {
    "value": { "path": "/form/date" },
    "mode": "datetime",
    "minDate": "2024-01-01",
    "maxDate": "2025-12-31"
  }
}

Container Components

Card

A bordered container with optional header and footer.

{
  "type": "Card",
  "props": {
    "title": "Card Title",
    "description": "Card description",
    "variant": "elevated"
  },
  "children": [...]
}

Property	Type	Description
`title`	BoundValue	Card title
`description`	BoundValue	Card description
`variant`	string	Style: `default`, `elevated`, `outlined`
`clickable`	boolean	Whether card is clickable

Dialog overlay.

{
  "type": "Modal",
  "props": {
    "open": { "path": "/ui/modalOpen" },
    "title": "Confirm Action",
    "size": "md"
  },
  "children": [...]
}

Tabs

Tabbed content container.

{
  "type": "Tabs",
  "props": {
    "activeTab": { "path": "/ui/activeTab" },
    "tabs": [
      { "id": "overview", "label": "Overview" },
      { "id": "settings", "label": "Settings" }
    ]
  },
  "children": {
    "overview": [...],
    "settings": [...]
  }
}

Accordion

Collapsible content sections.

{
  "type": "Accordion",
  "props": {
    "type": "single",
    "collapsible": true
  },
  "items": [
    {
      "id": "faq1",
      "title": "What is A2UI?",
      "content": { "type": "Text", "props": { "content": "..." } }
    }
  ]
}

ScrollArea

Scrollable container with custom scrollbars.

{
  "type": "ScrollArea",
  "props": {
    "maxHeight": "400px",
    "orientation": "vertical"
  },
  "children": [...]
}

Styling

All components accept a style property for customization:

{
  "type": "Card",
  "style": {
    "className": "p-6 bg-blue-50 dark:bg-blue-950 rounded-xl shadow-lg hover:shadow-xl transition-shadow"
  }
}

Responsive Overrides

For complex responsive layouts:

{
  "style": {
    "className": "p-4 md:p-6 lg:p-8",
    "responsive": {
      "sm": { "hidden": true },
      "md": { "display": "flex", "flexDirection": "row" }
    }
  }
}

Data Binding

A2UI uses BoundValue for dynamic data:

Literal Values

{ "content": "Static text" }
{ "count": 42 }
{ "enabled": true }

Data Path Binding

{ "content": { "path": "/user/name" } }
{ "items": { "path": "/data/products" } }

Template Variables

In List templates, use $index and $item:

{
  "type": "List",
  "props": { "data": { "path": "/items" } },
  "template": {
    "type": "Text",
    "props": {
      "content": { "path": "/items/$index/name" }
    }
  }
}

Actions

Components can trigger actions:

{
  "actions": {
    "onClick": {
      "type": "navigate",
      "payload": { "route": "/dashboard" }
    },
    "onChange": {
      "type": "updateData",
      "path": "/form/value"
    },
    "onSubmit": {
      "type": "invoke",
      "flowId": "process-form",
      "payload": { "data": { "path": "/form" } }
    }
  }
}

Action Types

Type	Description
`updateData`	Update data model at path
`navigate`	Navigate to a route
`invoke`	Invoke a Flow
`submit`	Submit form data
`openModal`	Open a modal
`closeModal`	Close a modal
`custom`	Custom action handler

Next Steps

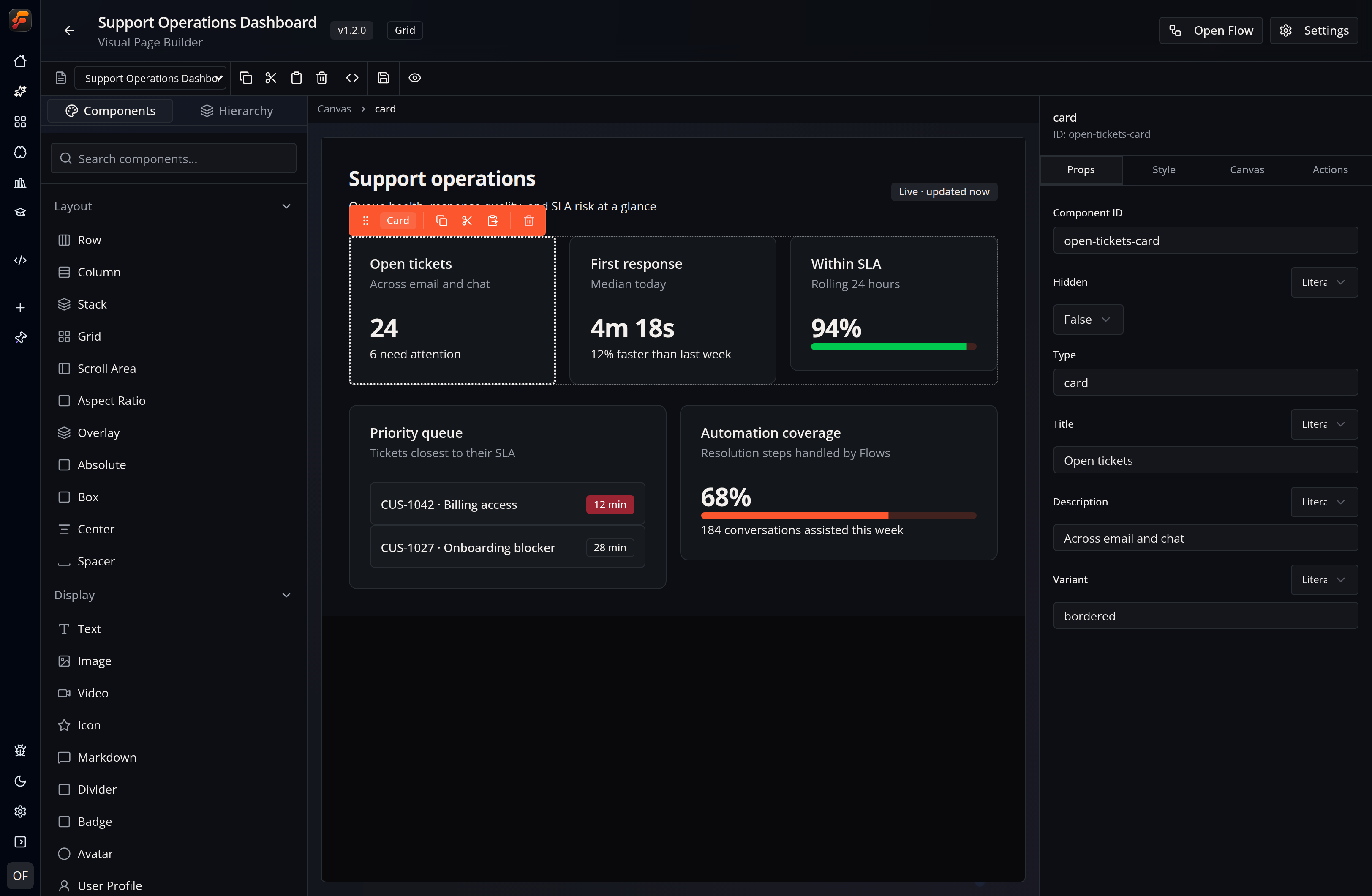

Widget Builder Guide - Learn to build widgets visually
FlowPilot UI Generation - Generate UIs with AI
