Widget Builder Guide

Widget Builder Guide

The Widget Builder is a visual tool for creating reusable UI components (widgets) that can be embedded in your apps, pages, and flows.

Overview

Widgets are self-contained UI components that:

• Can be customized through customization options
• Support versioning for safe updates
• Can be shared across your organization
• Render natively on all platforms

---

Getting Started

1. Open the Widget Builder

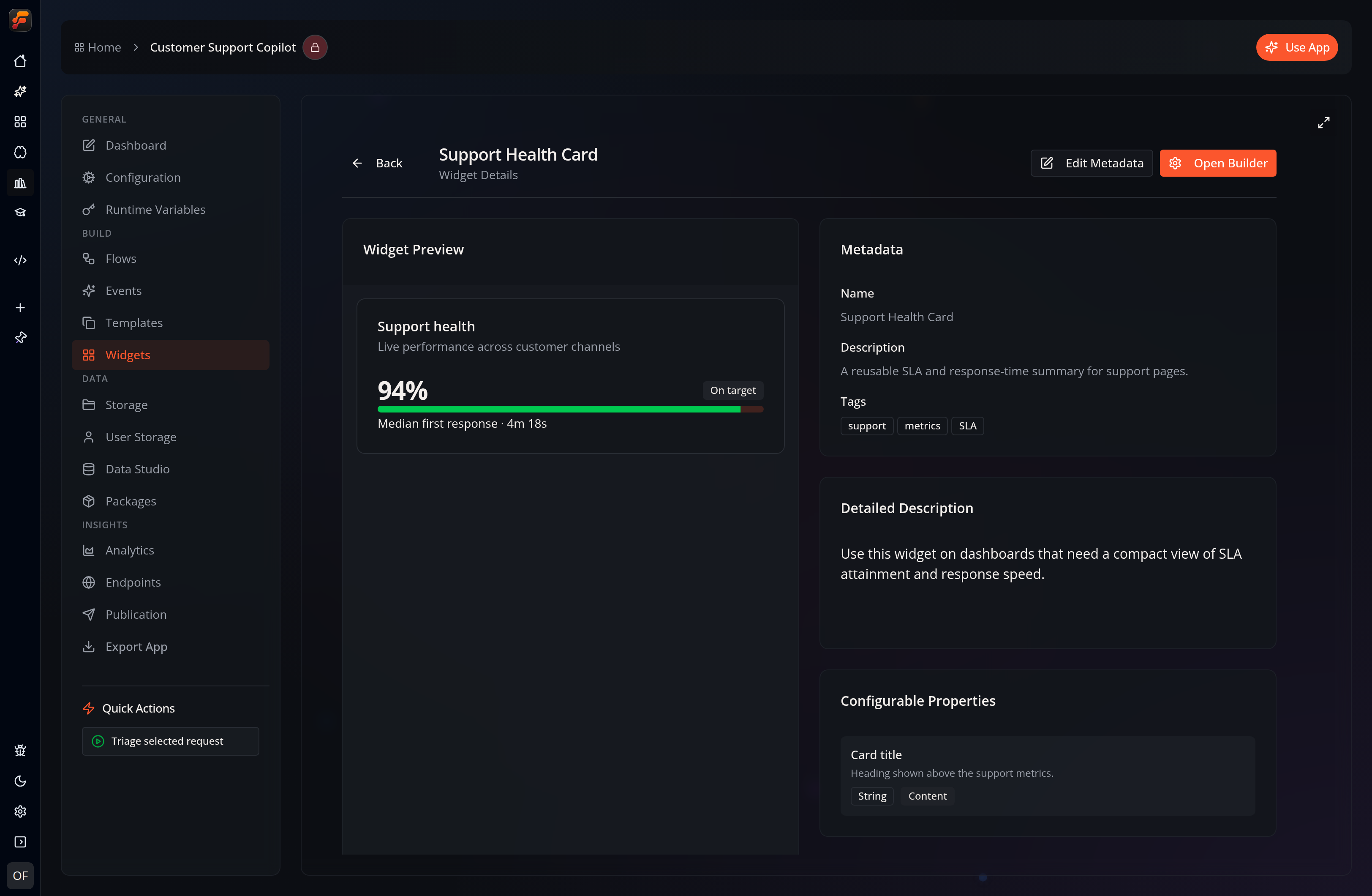

   Navigate to Studio > Widgets and click New Widget.

2. Choose a Template

   Start from a blank widget or choose a template:

   • Card Widget - Basic card layout
   • Form Widget - Input form with validation
   • List Widget - Dynamic list display
   • Dashboard Widget - Stats and metrics display

3. Design Your Widget

   Use the visual canvas to drag and drop components.

4. Add Customization Options

   Define which properties users can customize.

5. Publish Your Widget

   Version and publish for use across your apps.

---

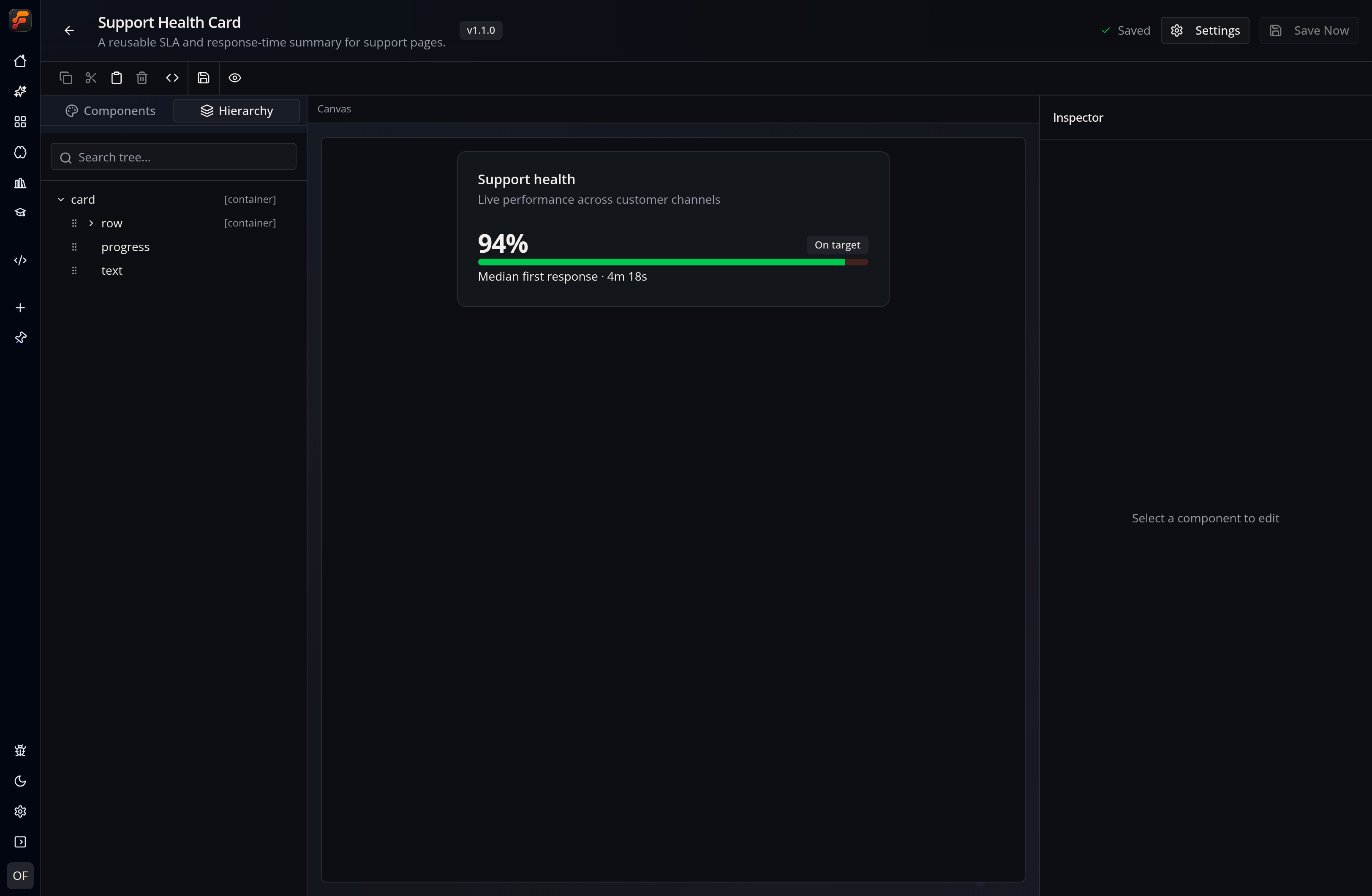

The Builder Interface

Canvas

The main design area where you arrange components visually.

• Drag & Drop - Add components from the left panel
• Select - Click to select and edit components
• Multi-select - Shift+click for multiple components
• Resize - Drag handles to resize
• Reorder - Drag in the layer tree

Component Panel

Browse available components organized by category:

• Layout - Row, Column, Grid, Stack
• Display - Text, Image, Icon, Divider
• Interactive - Button, TextField, Select
• Container - Card, Modal, Tabs

Properties Panel

Edit the selected component’s properties:

• Content - Text, images, data bindings
• Style - Tailwind classes, custom styles
• Actions - Click handlers, form submissions
• Responsive - Breakpoint-specific overrides

Data Panel

Manage the widget’s data model:

• Add Data - Define data entries
• Bind Data - Connect components to data paths
• Mock Data - Preview with sample data

---

Building Your First Widget

Example: User Profile Card

Let’s build a user profile card widget:

1. Add a Card Container

   Drag a Card component onto the canvas.

2. Add Layout

   Inside the card, add a Row for horizontal layout.

3. Add Avatar

   Add an Image component for the avatar:

   Binding: /user/avatar
   Fallback: /default-avatar.png
   Style: w-16 h-16 rounded-full

4. Add User Info

   Add a Column next to the image:

   • Text for name: { path: "/user/name" }
   • Text for role: { path: "/user/role" }

5. Add Customization

   Go to Customization tab and add:

   • showRole (boolean) - Toggle role visibility
   • avatarSize (select) - sm, md, lg

---

Customization Options

Customization options let users configure your widget without editing its structure.

Option Types

Type	Description	Example
string	Text input	Title, label
number	Numeric input	Count, size
boolean	Toggle switch	Show/hide features
select	Dropdown	Size options, variants
color	Color picker	Theme colors
image	Image upload	Custom images
data	Data path	Dynamic content source

Defining Options

{
  "customization": [
    {
      "id": "title",
      "label": "Widget Title",
      "type": "string",
      "defaultValue": "My Widget"
    },
    {
      "id": "variant",
      "label": "Style Variant",
      "type": "select",
      "options": [
        { "value": "default", "label": "Default" },
        { "value": "compact", "label": "Compact" }
      ],
      "defaultValue": "default"
    },
    {
      "id": "showFooter",
      "label": "Show Footer",
      "type": "boolean",
      "defaultValue": true
    }
  ]
}

Using Options in Components

Reference customization options using the $options prefix:

{
  "type": "Text",
  "props": {
    "content": { "path": "$options/title" }
  }
}

Conditional rendering based on options:

{
  "type": "Column",
  "condition": { "path": "$options/showFooter" },
  "children": [...]
}

---

Data Binding

Widget Data Model

Each widget has its own data model scoped to the widget instance:

/title          - Widget title
/items          - List of items
/items/0/name   - First item's name
/user/avatar    - User avatar URL

Binding to Data

Use BoundValue objects to bind component props to data:

{
  "type": "Text",
  "props": {
    "content": { "path": "/title" }
  }
}

External Data

Widgets can receive data from parent contexts:

{
  "type": "WidgetInstance",
  "props": {
    "widgetId": "user-card",
    "data": {
      "user": { "path": "/currentUser" }
    }
  }
}

---

Styling Widgets

Tailwind CSS

Use Tailwind classes for styling:

{
  "style": {
    "className": "p-6 bg-white dark:bg-gray-800 rounded-xl shadow-lg hover:shadow-xl transition-all"
  }
}

Responsive Design

Add responsive breakpoints:

{
  "style": {
    "className": "p-4 md:p-6 lg:p-8 grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-4"
  }
}

Dark Mode

Support dark mode with dark: prefix:

{
  "style": {
    "className": "bg-white dark:bg-gray-900 text-gray-900 dark:text-gray-100"
  }
}

---

Versioning

Widgets support semantic versioning (major.minor.patch):

Version Numbers

• Major (1.0.0 → 2.0.0): Breaking changes
• Minor (1.0.0 → 1.1.0): New features, backward compatible
• Patch (1.0.0 → 1.0.1): Bug fixes

Publishing Versions

1. Make your changes in the builder
2. Click Publish in the toolbar
3. Select version increment type
4. Add release notes
5. Confirm publish

Caution

Major version changes may break existing widget instances. Users will be notified to update.

---

Best Practices

Design Guidelines

• Keep widgets focused - One purpose per widget
• Use semantic structure - Proper heading hierarchy
• Support dark mode - Test both themes
• Plan for responsiveness - Test all breakpoints

Performance

• Minimize nesting - Flatten component hierarchy
• Use lazy loading - For images and heavy content
• Optimize data - Only bind necessary data

Accessibility

• Use semantic components - Buttons, headings, labels
• Add alt text - For all images
• Support keyboard - All interactive elements
• Test with screen readers - Verify announcements

---

FlowPilot Integration

Use FlowPilot to generate or modify widgets with AI:

1. Select a widget or component
2. Click Edit with FlowPilot in the toolbar
3. Describe your changes:
   • “Add a loading state to this button”
   • “Make this card responsive with 2 columns on mobile”
   • “Add hover animations to all cards”

Tip

FlowPilot understands context - it knows your current widget structure and can make targeted improvements.

---
