Security Architecture

Flow-Like is designed with a defense-in-depth approach. Every layer — from the WASM execution sandbox to the API authentication stack — is built to minimize attack surface and protect user data.

Design Principles

Principle	Implementation
Local-first	Data stays on your hardware. No cloud dependency unless you choose to deploy remotely.
Least privilege	WASM nodes get zero capabilities by default. Every permission must be explicitly declared and approved.
Memory safety	The core engine is written in Rust — no buffer overflows, use-after-free, or data races.
Defense in depth	Multiple independent layers: sandbox isolation, capability enforcement, authentication, RBAC, TLS.
Auditability	Complete data lineage, typed execution traces, and structured logging.

---

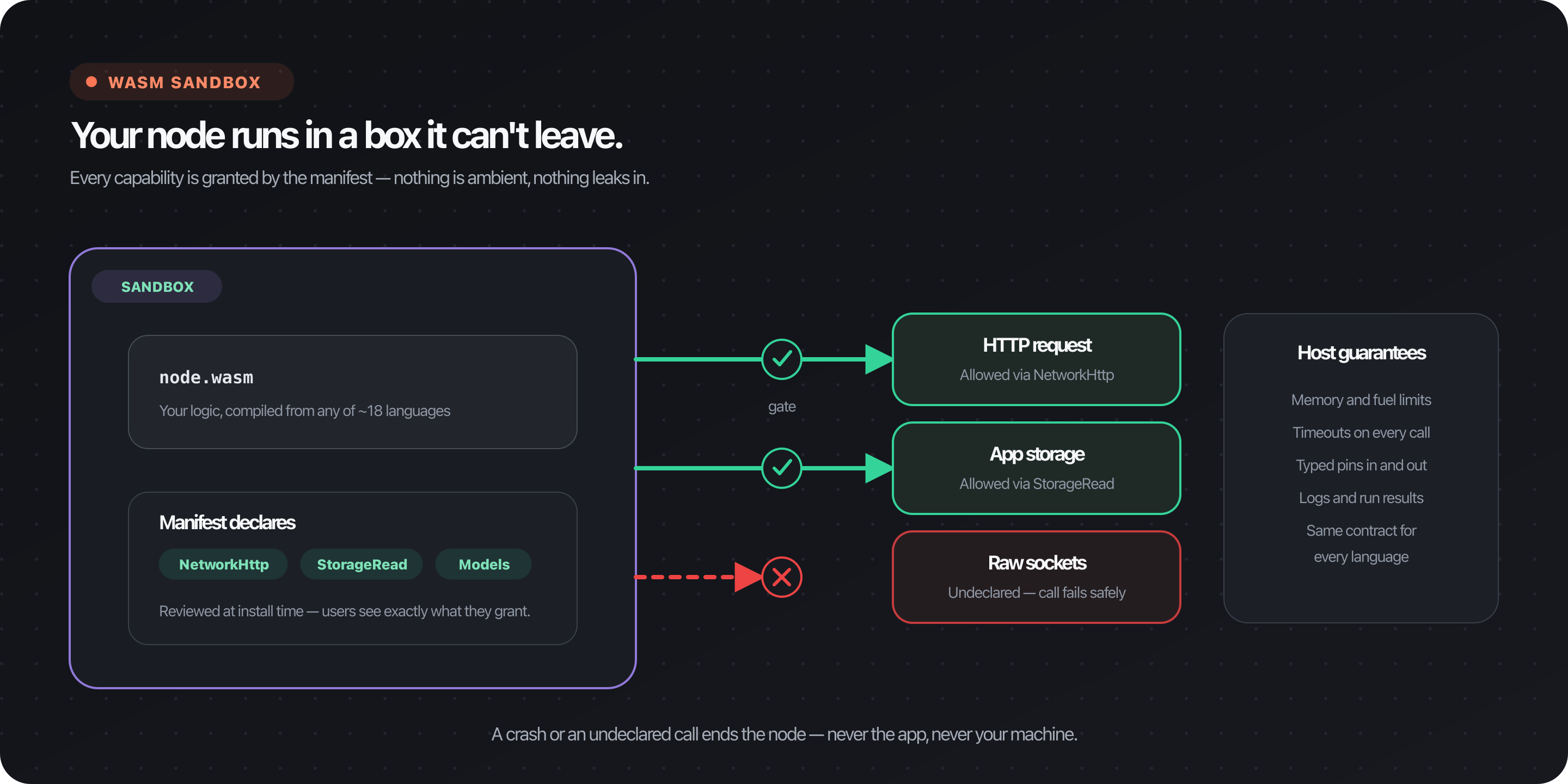

WASM Sandbox

All third-party nodes run inside isolated Wasmtime sandboxes. This is the primary security boundary between untrusted code and your system.

Isolation Guarantees

Each WASM node instance receives:

• Separate linear memory — the node cannot read or write host process memory
• No filesystem access — WASI is disabled by default (allow_wasi: false)
• No network access — WASI networking is disabled by default (allow_wasi_network: false)
• No OS peripheral access — no clipboard, camera, microphone, or other hardware
• No inter-node visibility — a node can only see its own inputs and memory

Resource Limits

The runtime enforces hard limits on every WASM execution:

Resource	Default	Restrictive	Permissive
Memory	64 MB	16 MB	4 GB
CPU fuel	10B instructions (~10s)	1B (~1s)	100B (~100s)
Timeout	30s	10s	300s
Stack depth	Configurable	Reduced	Increased
Tables/memories	Bounded	Minimal	Extended

Fuel metering and epoch-based interruption ensure that runaway loops or deliberate resource abuse cannot impact the host system. When a limit is exceeded, the execution is terminated immediately.

Capability System

Rather than granting blanket access, Flow-Like uses a bitflag-based capability system. A node’s declared permissions map to specific capability bits that are checked at every host function call:

Capability	What it controls
STORAGE_READ	Read from storage backends
STORAGE_WRITE	Write to storage backends
STORAGE_DELETE	Delete from storage
HTTP_GET	Make outbound HTTP GET requests
HTTP_WRITE	Make outbound HTTP POST/PUT/DELETE requests
WEBSOCKET	Open persistent WebSocket connections
TCP	Open TCP socket connections
UDP	Open UDP socket connections
DNS	Perform DNS lookups
VARIABLES_READ	Read workflow variables
VARIABLES_WRITE	Write workflow variables
CACHE_READ / CACHE_WRITE	Use the execution cache
STREAMING	Stream incremental output
A2UI	Generate dynamic UI
MODELS	Invoke AI/ML model inference
OAUTH / TOKEN	Use authentication flows
FUNCTIONS	Call registered host functions

Default capability set (STANDARD): STORAGE_READ | HTTP_GET | VARIABLES_READ | CACHE_ALL

Compound capabilities:

• NETWORK_ALL = HTTP_GET | HTTP_WRITE | WEBSOCKET | TCP | UDP | DNS
• STORAGE_ALL = STORAGE_READ | STORAGE_WRITE | STORAGE_DELETE
• AUTH_ALL = OAUTH | TOKEN

Anything not in the default set must be explicitly requested by the node and approved by the user.

Security Configuration

The WasmSecurityConfig struct brings all sandbox controls together:

• limits — resource constraints (memory, CPU, timeout)
• capabilities — bitflag permission set
• allow_wasi — filesystem/environment access (default: off)
• allow_wasi_network — WASI networking (default: off)
• allowed_hosts — optional allowlist for HTTP targets

For details on how permissions appear to end users, see Sandboxing & Permissions.

---

Authentication

Flow-Like supports multiple authentication methods depending on the deployment context.

User Authentication (OIDC / OAuth2)

For interactive users, Flow-Like delegates authentication to an external OpenID Connect provider. The API proxies the standard OIDC endpoints:

• /auth/discovery — OpenID configuration
• /auth/jwks — JSON Web Key Set
• /auth/authorize — Authorization endpoint
• /auth/token — Token exchange
• /auth/userinfo — User info lookup
• /auth/revoke — Token revocation

The JWT middleware validates every request, resolves the user against the database, and loads their role memberships.

API Keys

For service-to-service or automation use cases, API keys are supported via the X-API-Key header. These are associated with technical users that have explicit role assignments.

Personal Access Tokens (PAT)

For programmatic access by human users, PATs are supported via the Authorization: PAT <token> header. These carry the same permissions as the issuing user.

Executor JWT (Internal)

The executor (which runs workflows) authenticates to the API using ES256 (ECDSA P-256) JWTs. These tokens are:

• Short-lived — include exp, nbf, and iat claims
• Scoped — contain run_id, app_id, board_id, and event_id
• Audience-restricted — validated against flow-like-executor
• Issuer-verified — must come from flow-like

Public keys are distributed via environment variables or fetched from the API’s JWKS endpoint.

---

Authorization (RBAC)

Flow-Like implements role-based access control with 25+ granular permissions organized into logical groups:

Group	Permissions
Admin	Owner, Admin (implicitly grant all others)
Team	ReadTeam, ReadRoles
Files	ReadFiles, WriteFiles
API	InvokeApi
Boards	ReadBoards, ExecuteBoards, WriteBoards
Events	ListEvents, ReadEvents, ExecuteEvents, WriteEvents
Observability	ReadLogs, ReadAnalytics
Configuration	ReadConfig, WriteConfig
Content	ReadTemplates, WriteTemplates, ReadCourses, WriteCourses, ReadWidgets, WriteWidgets, WriteRoutes
Meta	WriteMeta

Permissions are stored as bitflags for efficient evaluation. A user’s effective permissions are the union of all their role assignments.

---

Transport Security

• TLS everywhere — all HTTP traffic uses rustls, a memory-safe TLS implementation written in Rust. There is no OpenSSL dependency.
• HTTP/2 support — the API server supports HTTP/2 via Axum
• No plaintext fallback — production deployments must use TLS-terminated ingress

---

Data Protection

Local-First Architecture

By default, all data remains on the user’s machine:

• Workflow definitions, execution state, and outputs are stored locally
• AI models can run entirely on-device (llama.cpp, ONNX Runtime, Candle)
• No data is sent to external services without explicit user action

Storage Scoping

WASM nodes access storage through controlled host functions. Each storage operation is bound to a specific scope:

Scope	Access
Board storage	Shared across nodes in the same board
Node-scoped storage	Private to a specific node instance
User-scoped storage	Tied to the authenticated user
Upload directory	Controlled ingress path for user-provided files
Cache directory	Optionally node-scoped and/or user-scoped

A node cannot access storage outside its declared scope, regardless of what it attempts.

Credential Handling

• Secrets and API keys are stored in backend configuration, not in workflow definitions
• In Kubernetes deployments, credentials should use workload identity (IRSA / GKE Workload Identity / AKS federated identity) over static keys
• Static keys should be stored in Kubernetes Secrets with RBAC restrictions
• OAuth tokens for third-party services are stored in memory and scoped to sessions

---

Supply Chain Security

Flow-Like takes several measures to secure its dependency chain:

• Dependency auditing — Rust dependencies are auditable via cargo-audit
• License inventory — complete third-party license information is maintained in the thirdparty/ directory
• Minimal containers — production container images use minimal base images
• Image pinning — container images can be pinned by digest
• Image signing — compatible with cosign for image verification
• TLS stack — uses rustls across the board, eliminating OpenSSL as an attack vector
• Observability — Prometheus metrics, OpenTelemetry tracing, and Sentry error tracking for anomaly detection

---

Deployment Hardening

Kubernetes

For production Kubernetes deployments:

• Kata Containers — run workflows in lightweight VM boundaries via runtimeClass
• Network policies — restrict executor egress to storage endpoints only
• Workload identity — avoid static S3 credentials; use cloud-native identity
• RBAC — limit access to Kubernetes secrets
• Admission policies — enforce image signatures

See Kubernetes Security Notes for detailed configuration.

Docker Compose

For Docker Compose deployments:

• Keep services on an internal network
• Use environment variables or Docker secrets for credentials
• Pin image versions
• Monitor with the built-in Prometheus/Grafana stack

---

Reporting Vulnerabilities

Do not open a public GitHub issue for security vulnerabilities.

Report privately to security@great-co.de.

Step	Timeline
Acknowledgment	Within 48 hours
Initial assessment	Within 5 business days
Regular updates	Until resolved
Credit in release notes	Unless you prefer anonymity

In Scope

• WASM sandbox escapes or privilege escalation
• Authentication or authorization bypasses
• Injection vulnerabilities (SQL, command, path traversal)
• Sensitive data exposure (credentials, tokens, PII)
• Denial-of-service in the executor or API
• Supply chain issues in dependencies

Out of Scope

• Vulnerabilities in third-party WASM nodes (report to the node author)
• Social engineering attacks
• Physical access attacks
• Issues in deprecated or unsupported versions
